Welcome To
Flight Manufacturing Corp.

Leading Manufacturer of Precision Auger Flighting for Agriculture & Industry

About Our Flighting Products

Our diverse range covers a complete spectrum of auger flighting required in agriculture and industry. Our flighting is produced on machinery developed in-house and is strictly controlled for quality and dimensional accuracy.

We manufacture individual custom sizes as well as annual production quantities. Fast response times, unrivaled service and competitive pricing ensure a strong bond with our customers.

As a member of the Lenham Group of companies, we manufacture high precision edge-wound helicoid flighting and sectional segmental flighting. We are inter-linked with family members Top Flite Corporation & Princeton Flighting Corporation who manufacture continuous helicoid flighting on 14 state-of –the-art Lenham cold-rolling Mills.

The Lenham group of companies offer product quality, production capacity and total flexibility across the full spectrum in flight manufacturing.

Welcome To Flight Manufacturing, Corp.

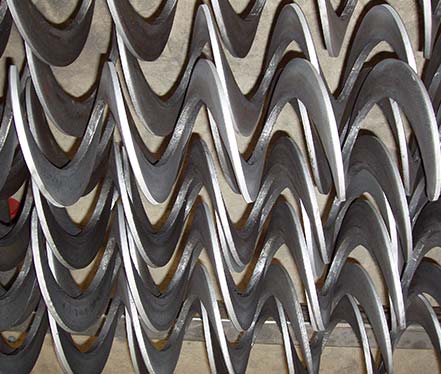

Our Flighting is Applicable for

  • Grain
  • Feeder Wagons
  • Mixer Wagons
  • Augers
  • Food Handling
  • Fertilizer
  • Mining
  • Underground Boring
  • Sludge Removal
  • Anchors
  • Construction
  • Snow Blowers
  • Post Hole Digging
  • Material Separators
  • Salt Spreaders
  • and More

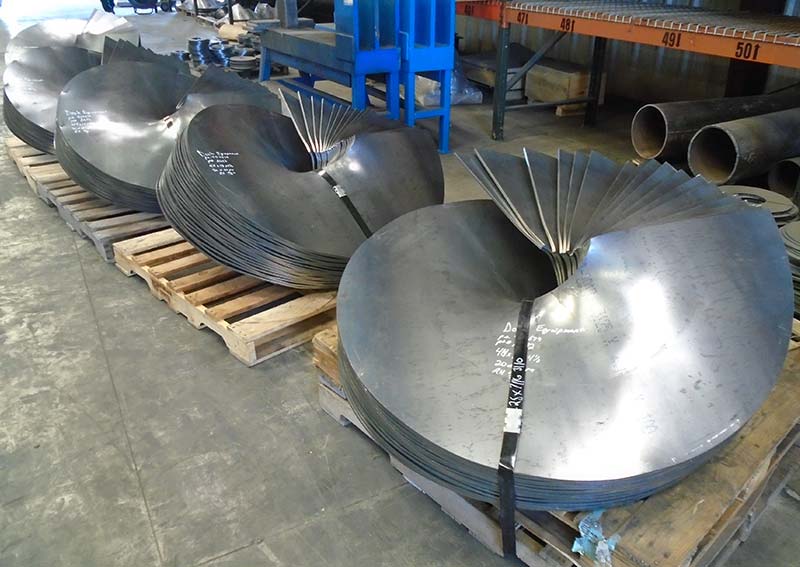

Sectional Auger Flighting at Flight Manufacturing, Corp.

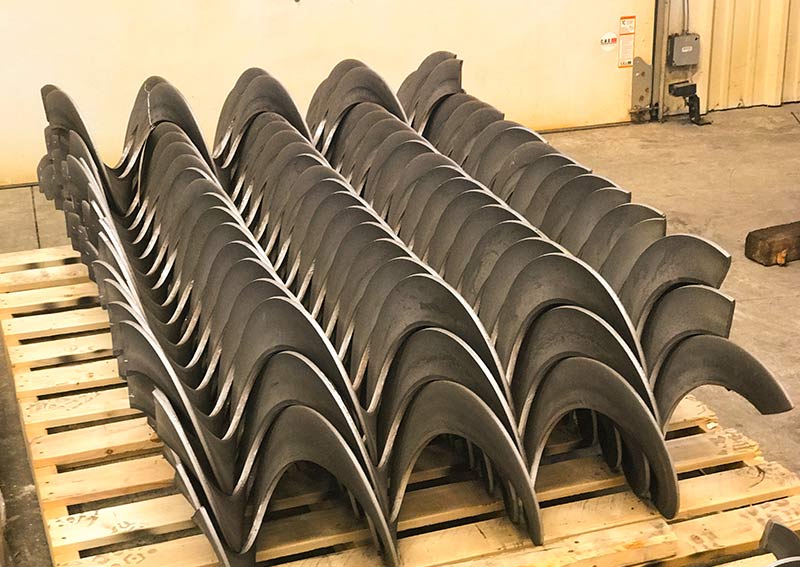

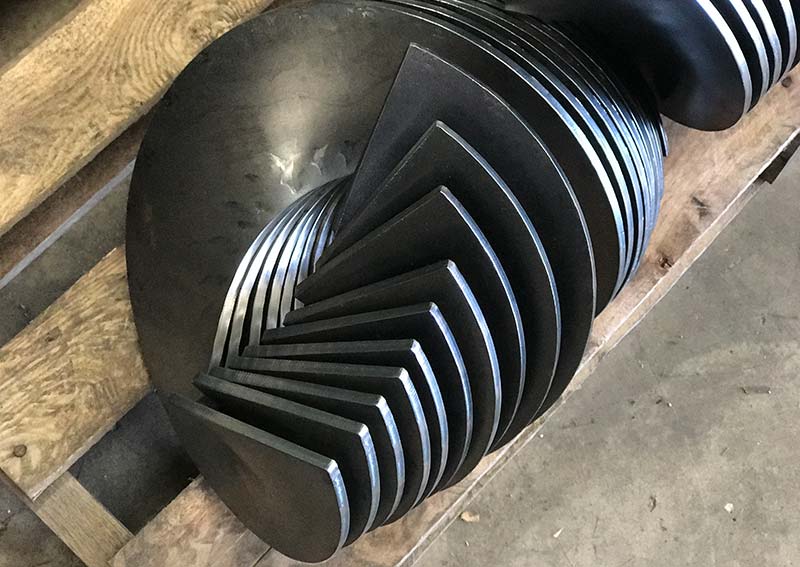

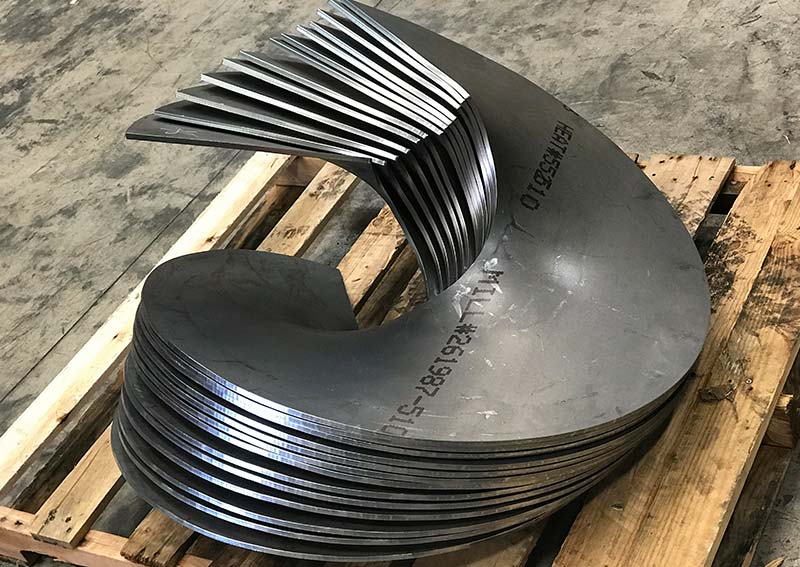

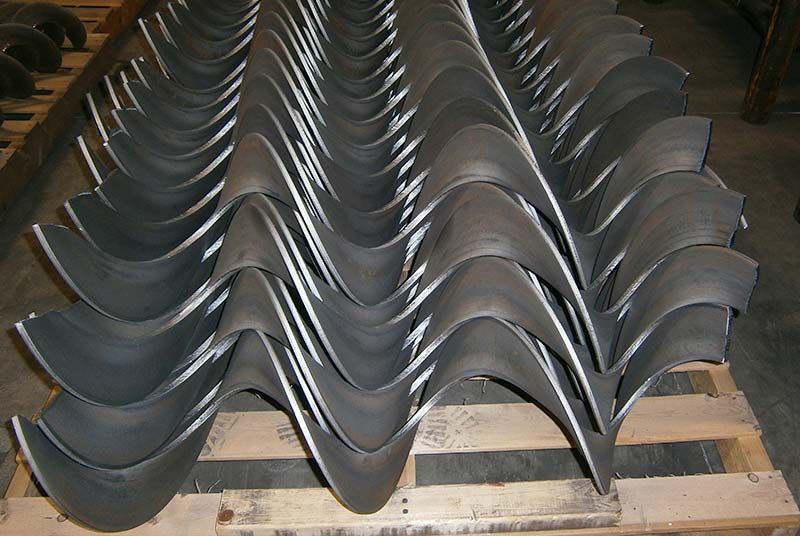

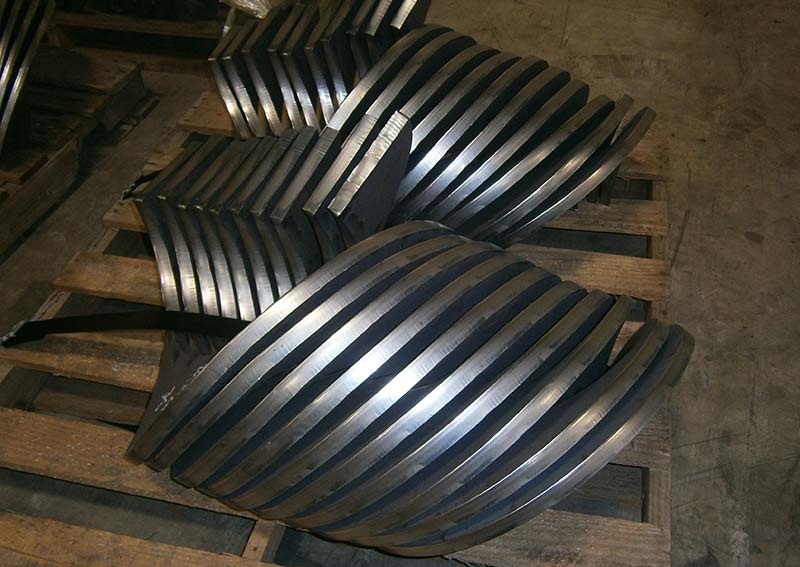

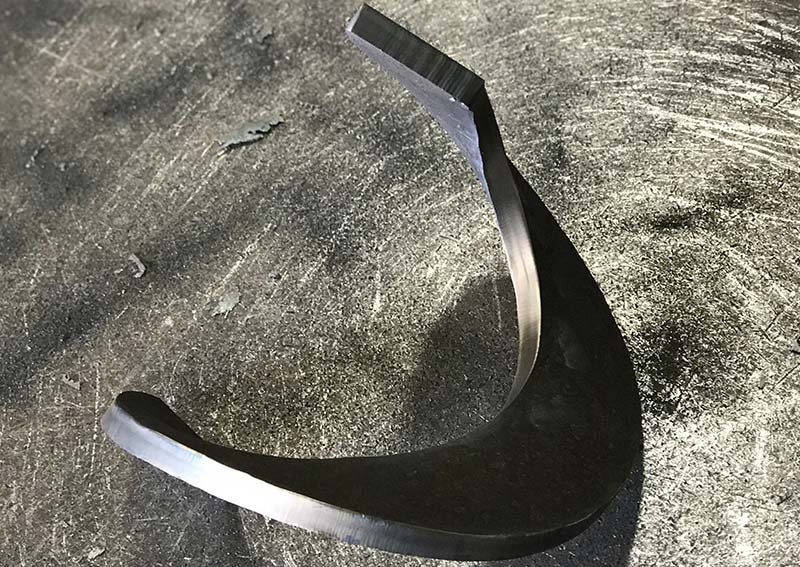

Sectional Auger Flighting

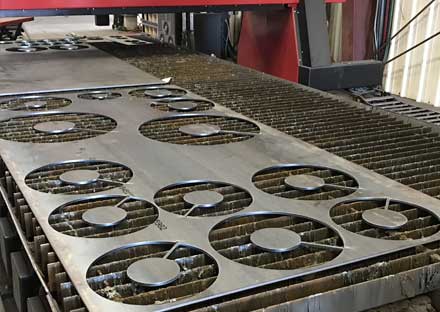

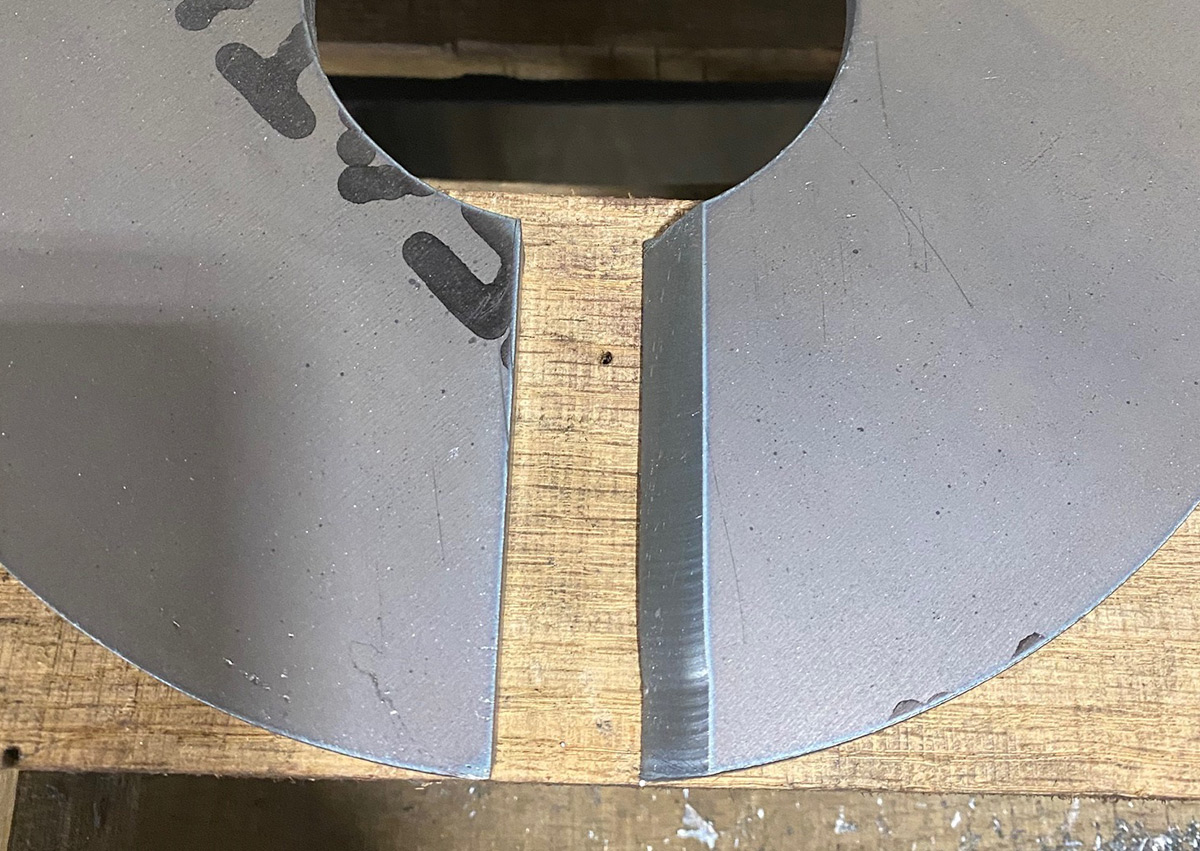

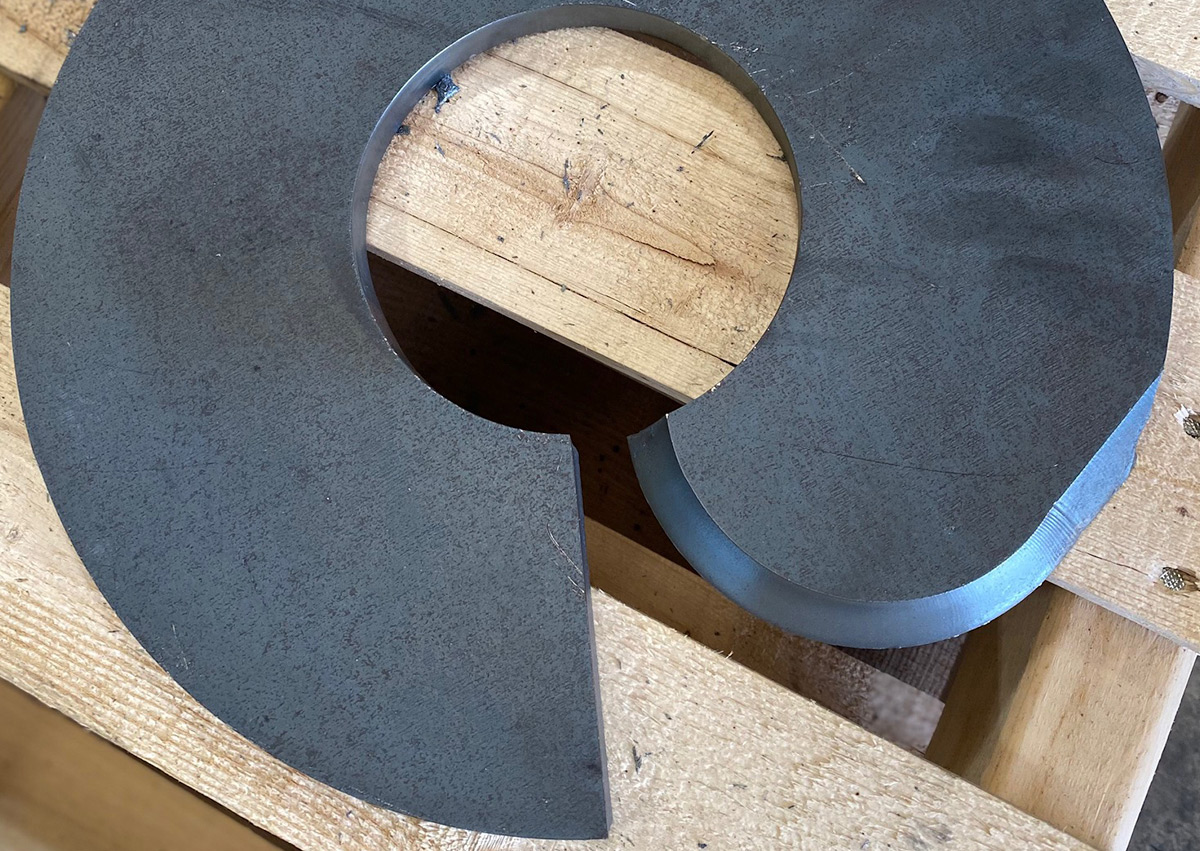

We manufacture sectional flighting by cutting blanks from plate metal and forming into individual one-pitch segments with precise outer diameter, inner diameter and pitch dimensions. We produce flighting in thicknesses ranging from 3/16" to 1" with the flight thickness maintained constant from inner to outer edge. Outer diameters range from 5" up to 72".

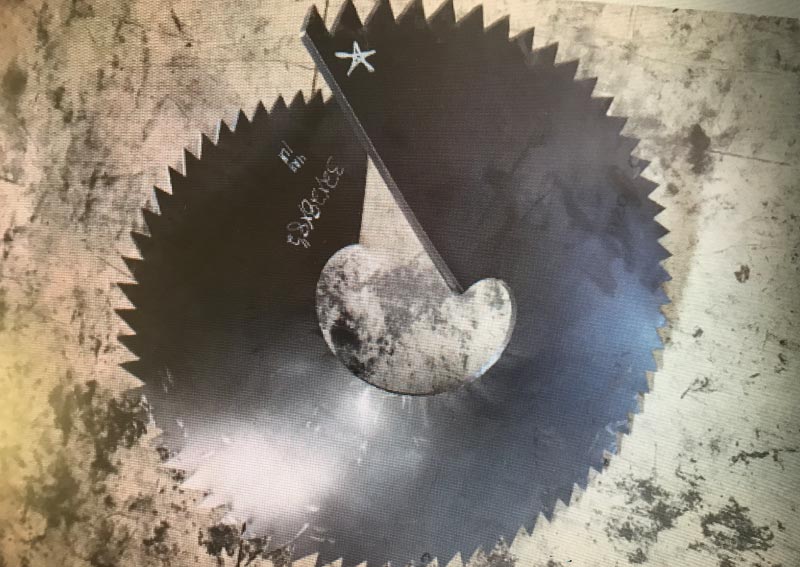

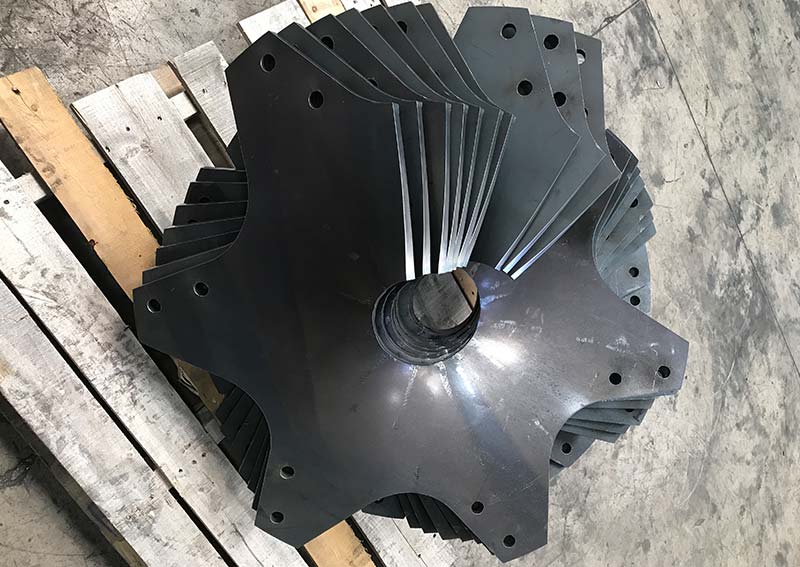

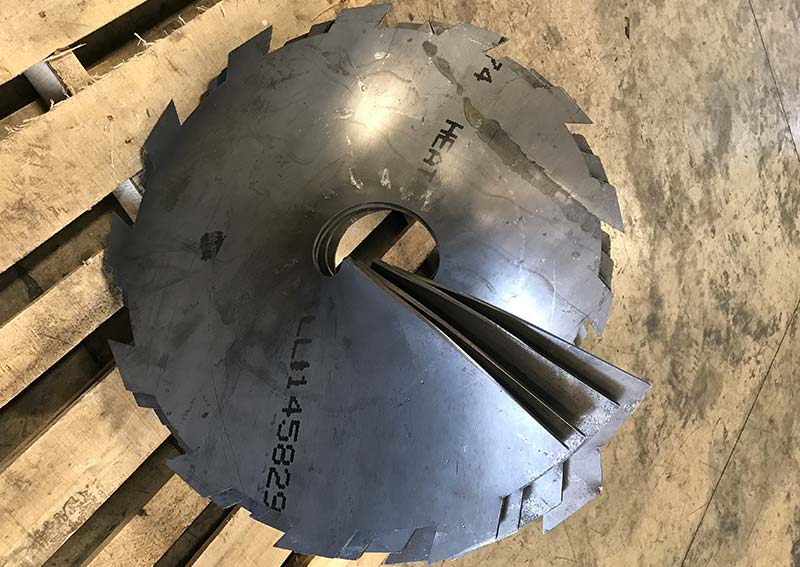

Our sectional flighting is formed from various grades of raw material and is available with holes, radius cuts, slots, tooth-cut outer edge, etc., as required.

  • 3/16"
  • 1/4"
  • 5/16"
  • 3/8"
  • 1/2"
  • 5/8"
  • 3/4"
  • 1"
  • Standard Pitch
  • Long Pitch
  • Short Pitch
  • A36 Carbon Steel
  • AR400 Steel
  • 304 Stainless Steel
  • 316 Stainless Steel
  • Grade 50 Steel

Learn More About Material Grades

  • Left Handed
  • Right Handed
Applications:
Grain, Feeder Wagons, Mixer Wagons, Augers, Food Handling, Fertilizer, Mining, Underground Boring, Sludge Removal, Construction, Post Hole Digging, Material Separators, Salt Spreaders, Snow Blowers, Anchors

Industries Served:
Agricultural, Material Handling, Utilities, Food, Mining

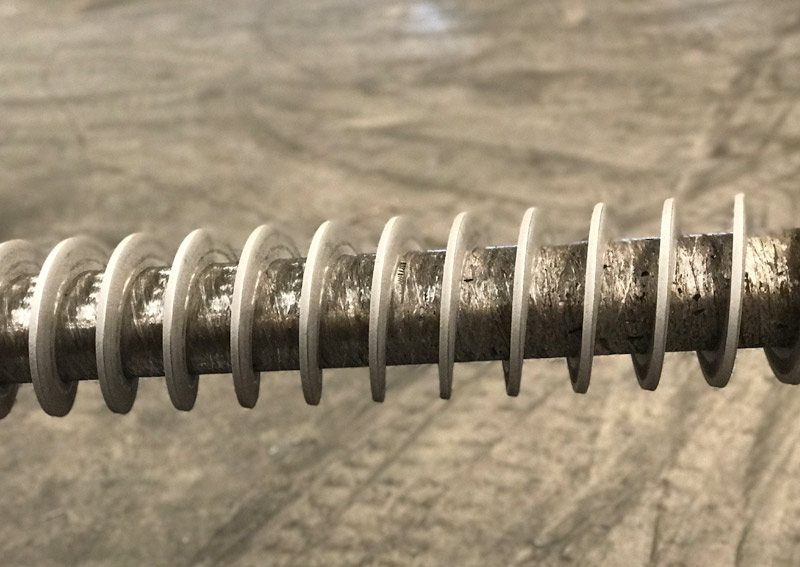

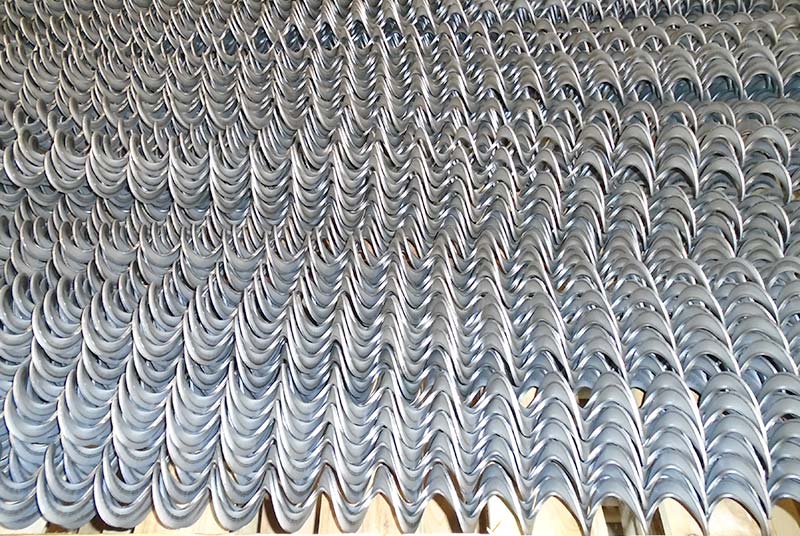

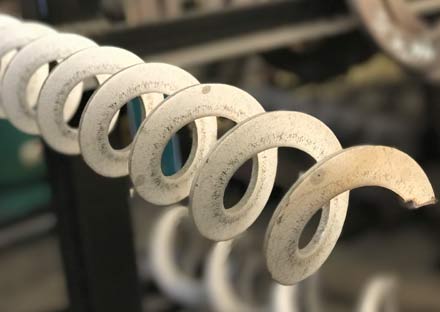

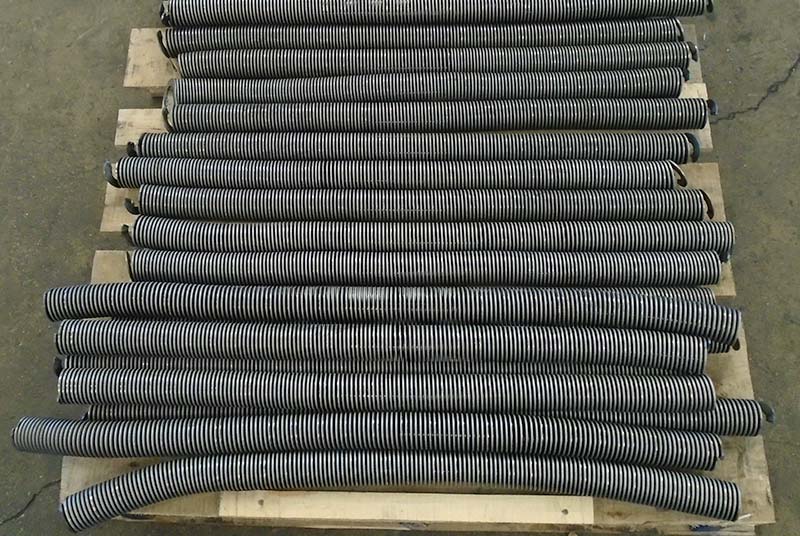

Edge-Wound Helicoid Flight at Flight Manufacturing, Corp.

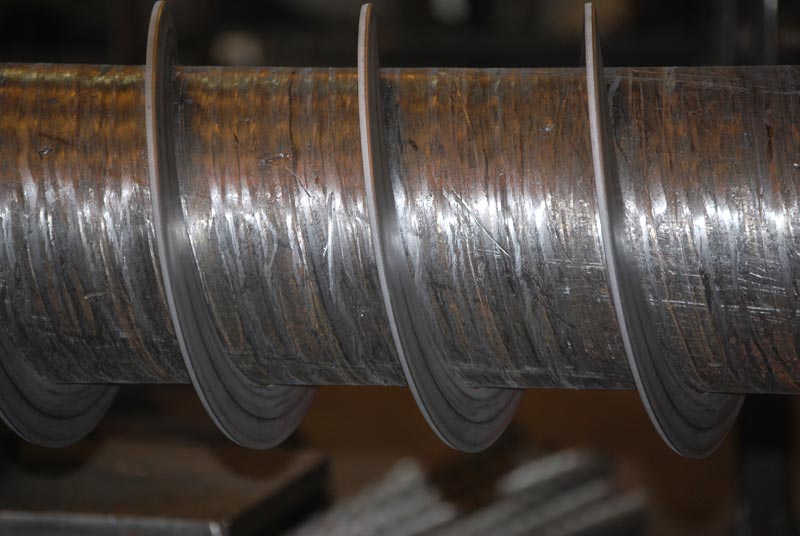

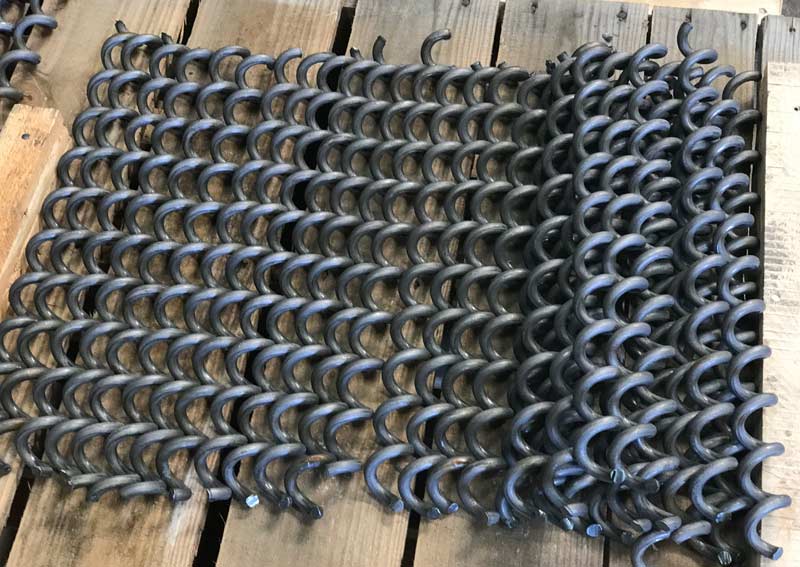

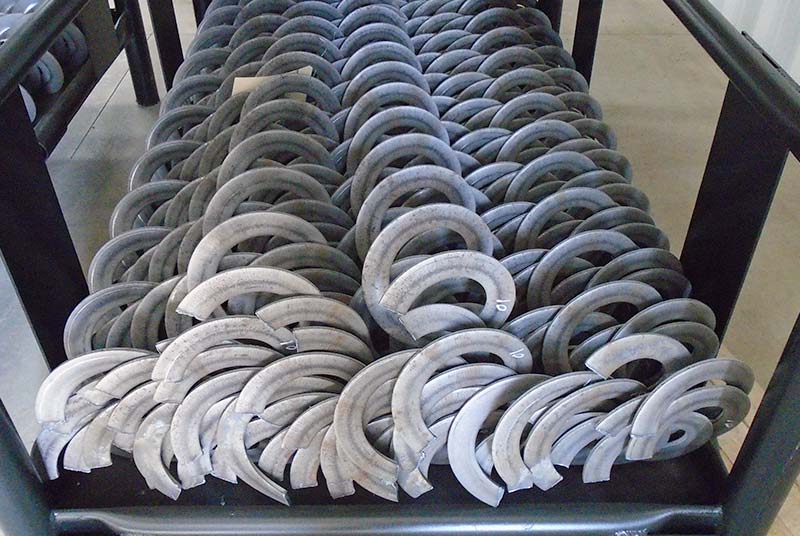

Edge-Wound Helicoid Flighting

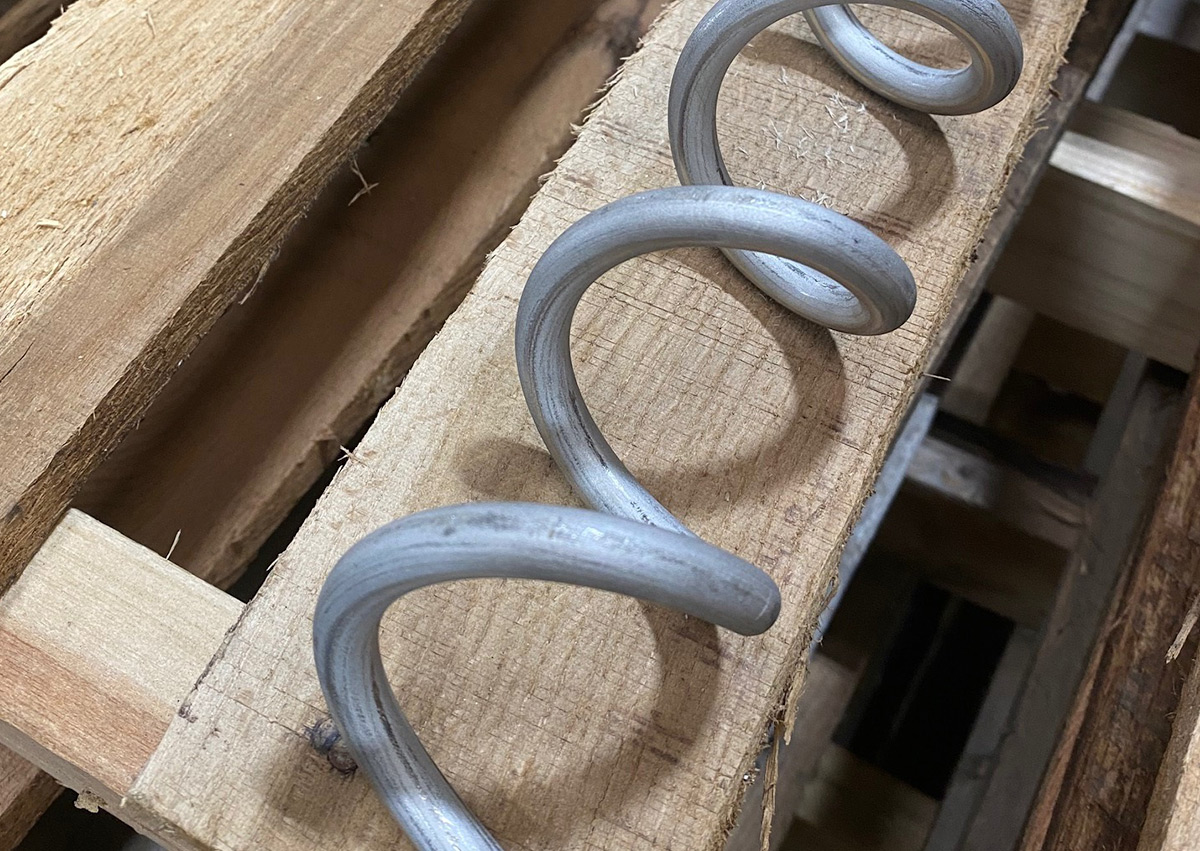

We manufacture highly rigid and wear-resistant edge-wound flighting using a precision cold forming process. We produce this heavy duty flighting from bar stock or coil in thicknesses from 3/16" to 1". This flighting is available with outside diameters that range from 1.5" to 20" and varied lengths to customer specifications.

Our edge-wound flighting provides a smooth surface finish and is formed in a wide range of diameter and pitch dimensions, both left and right handed. We maintain the close tolerances which are essential in both agricultural and industrial applications.

We maintain extremely close tolerances to these flights, typically -.00”/+.0625” Inner diameter and +/- 0.125” Pitch.

  • 10 ga.
  • 3/16"
  • 1/4"
  • 5/16"
  • 3/8"
  • 1/2"
  • 5/8"
  • 3/4"
  • 1"
  • Standard Pitch
  • Long Pitch
  • Short Pitch
  • Carbon Steel
  • 304 Stainless Steel
  • 316 Stainless Steel

Learn More About Material Grades

1.5" to 20"
  • Left Handed
  • Right Handed
Applications:
Grain, Feeder Wagons, Mixer Wagons, Augers, Food Handling, Fertilizer, Mining, Underground Boring, Sludge Removal, Construction, Post Hole Digging, Material Separators, Salt Spreaders, Snow Blowers, Anchors

Industries Served:
Agricultural, Material Handling, Utilities, Food, Mining, Construction

Materials

304 Stainless Steel is the most widely used heat resistant steel and is considered to be the most weldable alloy steel. It cannot be hardened by heat treatment, is certified food grade, and found to possess superior corrosion resistance to most chemicals and industrial atmosphere. It is also known for its formability and weldability.

Applications for 304 Stainless Steel include food and beverage, sanitation, fertilizer equipment, and pressure containing.

316 Stainless Steel is known for its exceptional resistance to pitting due to containing molybdenum, an alloy that drastically enhances corrosion resistance. It is also stronger at elevated temperatures than 304 Stainless.

Examples of applications for 316 Stainless Steel are outdoor architectural and landscape, textiles, paper mills and many marine applications.

A-36 Carbon Steel is the one of the most common grade structural steels in use. It is structurally sound and therefore often used in applications such as buildings and bridges as well as lightweight structures and equipment. It has a minmimum yield point of 36ksi and can be securely welded.

Grade 50 Steel possesses a minimum yeild point of 50ksi and is known for its good workability and weldability. It shares the same corrosion resistantance as A-36 carbon steel mentioned above.

AR400 Steel possesses a minimum hardness on the Brinell scale of 360 and a nominal hardness of 400 making it exceptionally sliding and impact abrasion resistant (AR) and therefore a good choice for products intending to handle abrasive materials, such as sand, gravel, and mud.

Applications for AR400 include mining and material handling equipment such as bins, silos, gates, buckets, and hoppers.

About Flight Manufacturing, Corp.

About Us

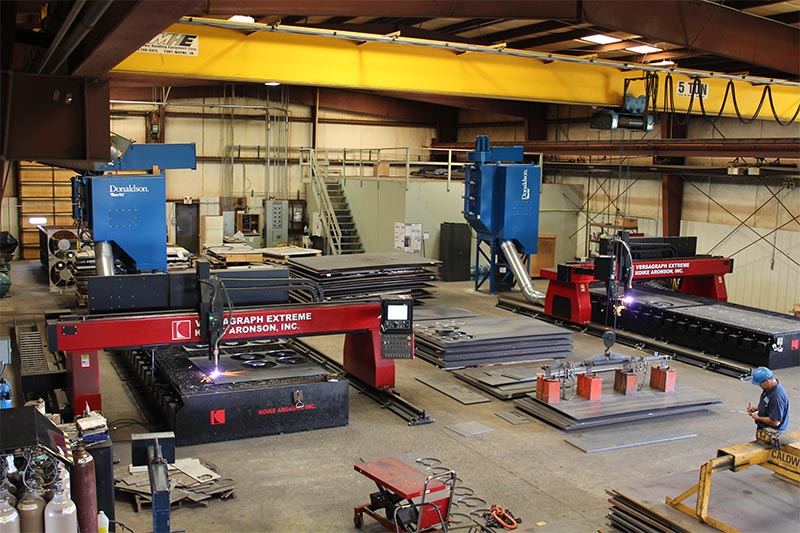

We have a modern 40,000 square foot facility housing a comprehensive range of advanced machinery (including two new high speed plasma cutters). Our very substantial stocks of raw material comprise both carbon steels and stainless steels in various grades and thicknesses enable us to cut lead times and respond very quickly to our customer's needs.

We are a high efficiency producer offering competitive pricing, quality products, and an excellent level of service. We invite you to join our loyal and expanding customer base. For further information please phone: 1-800-579-9978 or email to: [email protected].

Need Help Measuring?

Need Help Measuring?

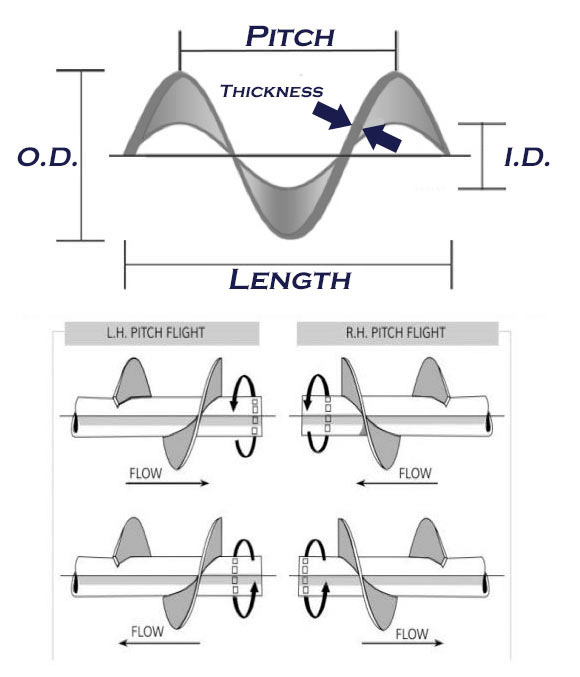

Measuring Flighting

Pitch:
Pitch is the distance between each section measured at the outer edge parallel with the shaft.

Outside Diameter (OD):
This is the vertical distance from upper to lower outer edges of the flighting.

Inside Diameter (ID):
This is the hole size in the flight into which the center tube or shaft fits.

Thickness:
This dimension is measured at the shaft at the thickest part of the flight.

Length:
This is the length per piece.

Quantity:
This is the total number of pieces needed.

Request Quote

Please feel free to use the form below to request a quote to manufacture our flighting products to your required specifications.

* denotes required field

Contact Information

Flighting Specifications

Additional Information

You may also select a file to attach to this quote request submission to help illustrate the specifications of your required flighting.
Please be advised only JPG, PNG or PDF files 5MB or smaller may be attached to your submission for security reasons.


The Lenham Group

We are a privately owned group of companies which specialize exclusively in the development and production of precision auger flighting and the improvement of auger performance through technical innovation.

We have a highly skilled and dedicated team of personnel drawing upon over 35 years of flighting production experience.

We have the capacity and flexibility to meet and exceed our customer expectations.

We are pushing the boundaries of conventional wisdom in this field and setting new standards.

Flight Manufacturing

Sectional and Edge-wound flighting in carbon steels, abrasion-resistant and stainless steels.

Flight Manufacturing

Princeton Flighting Corp.

Longer lasting, high quality, cold rolled continuous helicoid flighting in carbon and stainless steels.

Princeton Flighting Corp

Top Flight Corporation

Longer lasting, high quality, cold rolled continuous helicoid flighting in carbon and stainless steels.

Top Flite Corporation

Contact Flight Manufacturing, Corp.

Please feel free to use the information or form below to contact us with any questions, comments or requests.

  • 2750 Tradition Drive, Princeton, IL 61356
  • ph:1-800-579-9978
  • ph: 1-815-876-1616
  • fax: 1-815-872-1112
  • [email protected]
